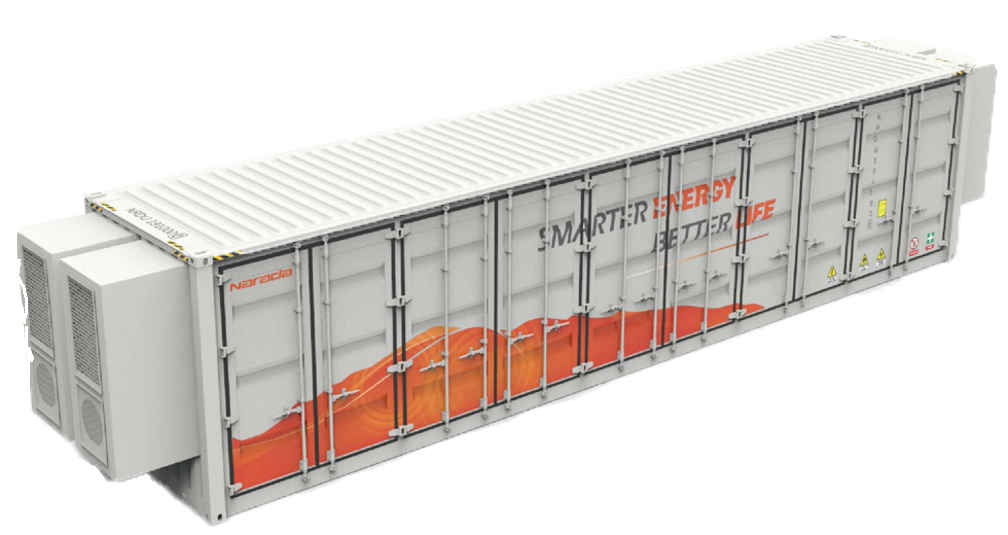

Center F - 40ft Non-Walk-In Energy Storage SystemBack

Technical advantages

?1500V high voltage system: high energy density, low auxiliary consumption. Efficient cost control, low comprehensive cost

?100% preassembled shipping: Plug-and-Play, short lead time. Factory testing, low commissioning cost

?Non-walk-in design: High space utilization, zone 4 aseismic design. Comply with NFPA standard

?Safe and reliable: Lithium-iron battery with Long cycle life. High system safety with UL9540 & 9540A certificates

?Flexible deployment: Factory preassembly, short lead time, low commissioning cost

?Intelligent operation: Module design, convenient operation & flexible maintenance. Digital technology, remote collaboration & intelligent monitoring

Product Performance

Battery Rated Capacity		250Ah	280Ah
Electrical	DC Rated Voltage	1152V	1088V
	Maximum Charge/Discharge Rate	0.5C/1C	0.5C/1C
	DC Rated Energy	5.18MWh	5.48MWh
Performance & Safety	DC Round Trip Efficiency @ Rated Power	93%~95%
	Battery Chemistry	LFP
	Calendar Life	20 years
	Fire Suppression	Gas + (water options)
	Cooling Concept of Battery Chamber	Air cooling
	Codes & Compliance	UL9540/UL9540A/CE/IEC/KC/KBIA
General Data (Combined BESS)	Weight (Approximate)	63T
	Enclosure Dimensions （WHD）	1219228962438mm
	Enclosure Rating	IP54
	Operating Temperature Range	-20~55℃
Software	Communication Interfaces	CAN,RS485,Ethernet
	Communication Protocols	CAN,Modbus RTU,Modbus TCP/IP

Industries

New Energy Storage

Industrial Energy Storage

Low-carbon travel

* Narada will provide accurate information in this website as far as possible. The information contained in this website/page (including but not limited to product pictures, specifications, parameters, etc.) shall be subject to the specific information on the product brochure. The final interpretation right of the product will be reserved by Zhejiang Narada Power Source Co., Ltd.
