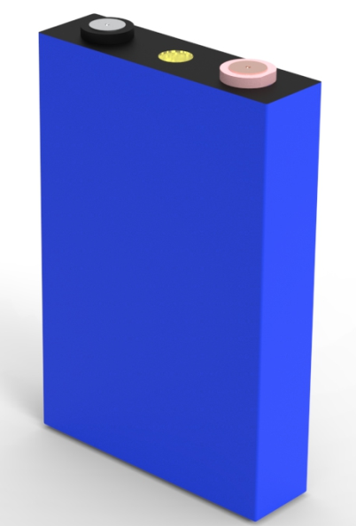

Prismatic CellBack

Technical advantages

?High degree of automation: highly automated production equipment ensures the consistency of battery performance and better guarantees the ultra-high quality of the battery;

?High-safety structure: ultra-stable and safe lithium iron phosphate material does not decompose at 800°C, the square aluminum shell has strong rigidity, and a combined cover plate with explosion-proof valve, high safety, no leakage, no explosion;

?Long cycle life: build a multi-dimensional three-dimensional conductive network, add graphene, combined with independent proprietary multi-layer coating technology, build a fast lithium ion transmission channel, use isotropic graphite, increase lithium insertion channels, electrolyte directional repair technology, and extend battery cells Cycle life;

?Hard-core patented technology: covers four main materials, structural parts, processes, equipment and tooling and other engineering technology applications;

?A number of authoritative product certifications: GB 31484, GB 31485, GB 31486, UN 38.3, UL1642, UL 1973, IEC 62619, IEC 62620, etc.

?Wide application areas: Products are widely used in passenger vehicles such as EV, HEV, PHEV, commercial vehicles such as electric buses, sightseeing vehicles, patrol vehicles, sweepers, fire trucks, mining machinery and other special vehicles.

  • Product Performance
  • Applications
ModelMaterial

Capacity

(Ah)

Voltage

(V)

AC Impedance

(mΩ)

Constant

Charge Current

Constant

Discharge Current

Temperature range

(℃)

Advantage

FP30ALFP303.2

≤1.0

1C

2CCharge:0~45℃

Discharge:-20~55℃

VDA standard size

High security

FE80B

LFP803.2

≤1.0

2C

3C

Charge:0~45℃

Discharge:-20~55℃

Long cycle life

Large rate charge and discharge

FE80D

LFP803.2≤0.80.4C0.8C

Charge:0~45℃

Discharge:-20~55℃

High energy density

Cost-effective

FE100ALFP1003.2

≤0.8

0.5C1C

Charge:0~45℃

Discharge:-20~55℃

High energy density

Cost-effective

FE105ALFP1053.2

≤0.8

1C2C

Charge:0~45℃

Discharge:-20~55℃

Long loop

High security

FE100A

(PLUS)

LFP1053.2

≤1.0

1C2C

Charge:0~45℃

Discharge:-20~55℃

High energy density

Long loop

FE125A

(PLUS)

LFP1253.2

≤1.0

1C1C

Charge:0~45℃

Discharge:-20~55℃

High energy density

Long loop

FP55A

LFP553.2

≤1.0

3C5C

Charge:0~45℃

Discharge:-20~55℃

High magnification

Long loop

FP55C

LFP553.2

≤1.0

1C3C

Charge:0~45℃

Discharge:-20~55℃

Cost-effective

High security

NE42

NCM423.65≤1.32C3C

Charge:0~45℃

Discharge:-20~55℃

VDA standard size

High security



Mass Production of Pouch Cell Module(LFP)



Product Specification

Module

MFE105X12MFE210X6

MFE315X4

MFE420X3

Cell

FE105A

Cell Interconnection

1P12S2P6S

3P4S

4P3S

Voltage(V)38.4
19.212.89.6

Capacity(Ah)

105210315420
Maximum Discharge Current(A)105210315350

Energy(kWh)

4.032

Size(mm)

Width(W)

476

Depth(D)

136

Height(H)

216

Temperature range

(℃)

Charge0~45

Discharge

-20~55





Mass Production of Prismatic Cell Module (NCM)



Product Specification

Module

MNE126X4

MNE84X6

Cell

NE42

Cell Interconnection

3P4S2P6S
Voltage(V)14.621.9

Capacity(Ah)

12684
Maximum Discharge Current(A)1.5C

Energy(kWh)

1.8396

Size(mm)

Width(W)

369

Depth(D)

108

Height(H)

153

Temperature range

(℃)

Charge0~45

Discharge

-20~55





Mass Production of Prismatic Cell Module (LFP)



Product Specification

Module

M66M65M65-1M64M64-1M53M53-1

Cell

FE100A

FE80D

FE80C

FE80D

FE80C

FE105A

FE105A

Cell Interconnection

1P12S1P12S

1P12S

1P11S

1P11S

1P12S1P12S
Voltage(V)38.4
38.438.435.235.238.438.4

Capacity(Ah)

10080868086110105
Maximum Discharge Current(A)1C0.8C1C0.8C1C1C1C

Size(mm)

Width(W)

475436436436436475.8475.8

Depth(D)

130

Height(H)

210167167167167258258

Temperature range

(℃)

Charge0~45

Discharge

-20~55
