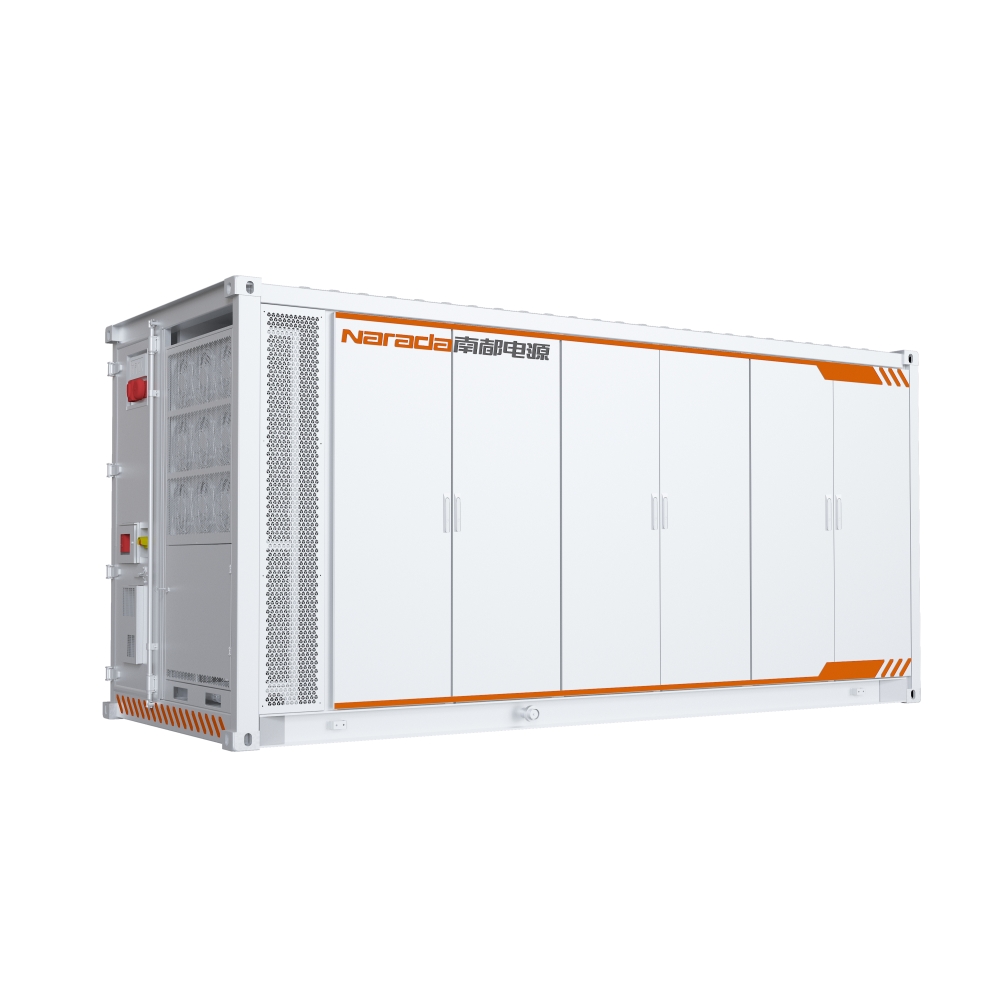

Center L Plus - 20ft Liquid Cooling Energy Storage SystemBack

Technical advantages

?More Secure: Detects slight leakage of eletrolyte and coolant within. Automatic fire suppression triggered at PACK level.

?More Reliable: Reliable dual liquid cooling system that backups each other.

?Flexible Deployment: Factory preassembly, short lead time Low installation and commissioning cost.

?Ultra Long Life: System cycles more than 10,000 times Intelligent liquid cooling ensures the system temperature varies between 5℃.

?Intelligent Operation: Modular design, convenient operation & flexible maintenance Digital technology, remote collaboration & intelligent monitoring.

Product Performance

Battery Rated Capacity		280Ah	280Ah	314Ah	320Ah
Electrical	DC Rated Voltage	1331.2V
	Maximum Charge/Discharge Rate	1CC/1CD	0.5CC/0.5CD	0.5CC/0.5CD	0.25CC/0.25CD
	DC Rated Energy	3.72MWh	3.72MWh	5.01MWh	5.11MWh
Performance & Safety	DC Round Trip Efficiency @ Rated Power	92%	≥94%
	Battery Chemistry	LFP
	Calendar Life	20 years
	Fire Suppression	Gas+water
	Cooling Concept of Battery Chamber	Liquid cooling
	Codes & Compliance	UL9540/UL9540A/CE/IEC/KC/KBIA
General Data (Combined BESS)	Weight (Approximate)	36T	35T	45T	45T
	Enclosure Dimensions (WHD)	6058 × 2896×2438mm
	Enclosure Rating	IP54
	Operating Temperature Range	-30℃~55℃
Software	Communication Interfaces	CAN, RS485, Ethernet
	Communication Protocols	CAN, Modbus RTU, Modbus TCP/IP

Industries

New Energy Storage

Industrial Energy Storage

Low-carbon travel

* Narada will provide accurate information in this website as far as possible. The information contained in this website/page (including but not limited to product pictures, specifications, parameters, etc.) shall be subject to the specific information on the product brochure. The final interpretation right of the product will be reserved by Zhejiang Narada Power Source Co., Ltd.
